SERIES 1050 - SUBMINIATURE SNAP-ACTION SWITCHES

product detailed information

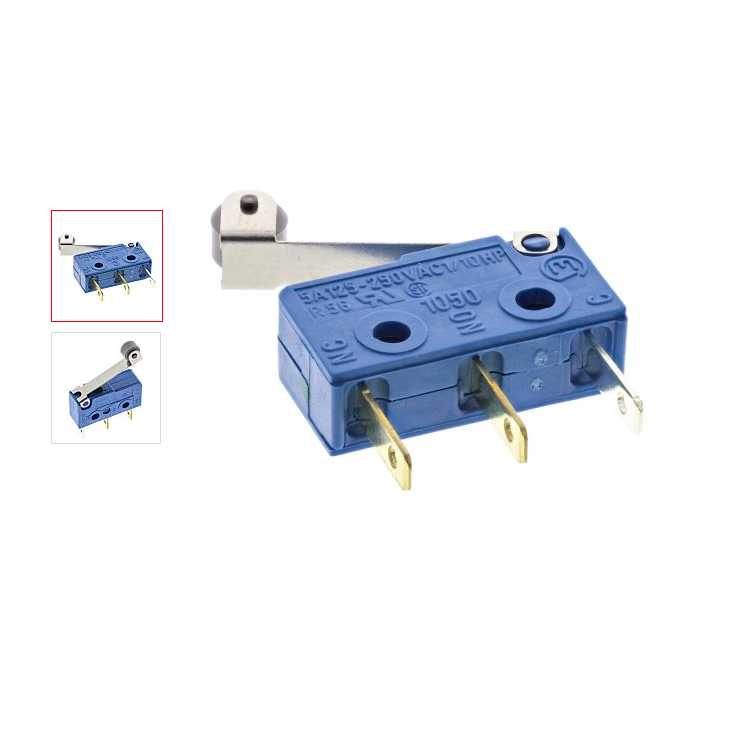

Marquardt snap-in subminiature microswitch - 1050 Series

Marquardt 1050 Series snap-in single pole switch. The 1050 Series is a snap-in subminiature microswitch with a body width of 6.4mm and is designed to fit DIN41635B. The contact resistance is <100mΩ and the insulation resistance is >100MΩ. The Marquardt 1050 Series offers a wide range of actuators and terminals.



Contact distance <3mm

Bouncing time <5ms

UL 94 V-2 Flammability



Note

The rated current and life expectancy data are nominal values. See the data sheet for more ratings.



Recognition

UL; CSA; ENEC



Switch type: switch single pole double throw

Connection: shovel cable boots 6.3 ́ 0.8 mm,

189157: Although 4.8 ́ 0.5 mm

Switch material: silver

Mechanical life: 30 ́ 106 can operate to the maximum

Contact load

Temperature range: -55°C* to +85°C

Size: (see photo)

Product Specifications

Attribute value

Actuator Type Roller Lever

Terminal Type Wing

Contact Current Rating 5 A @ 250 V ac

Contact Configuration SPDT

IP protection class IP00, IP40

Operating force 0.6 N

Minimum operating temperature -40 ° C

Maximum working temperature +100°C

Switch housing V2 housing

Contact Material Silver

Housing Material PBTP

Mechanical life 1000000Cycles

Release force 0.12N

Operating temperature range -40 → +100°C

Price Terms︰ MARQUARDT

Payment Terms︰ TT

Lead Time︰ 6-8w

SKU︰ 5000

Product Image
